Condition

Supertype: Observation

Definition: Observation that provides the conditionability of a piece of equipment or Component to function to specification. of a piece of equipment or a Componentengineered system part of a Device composed of zero or more Components.

Version Info

Introduced	Deprecated	Updated
1.1

Documentation

Description

It provides the information and data reported from a piece of equipment for those DataItem entities defined with a category,DataItem property of CONDITION in the MTConnectDevices Response Documentresponse document published by an MTConnect Agent in response to a probe request..

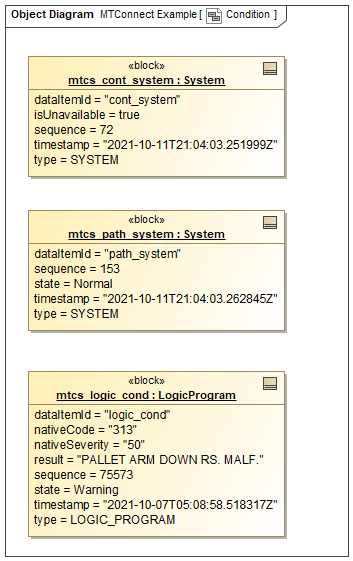

Figure Condition Example shows Condition type examples for various state: Normal (dataItemId = path_system) and Warning (dataItemId = logic_cond). It also shows an example for when the state is not available (dataItemId = cont_system).

Note: See condition-example for the XML representation of the same example.

The following Section Value Properties of Condition lists the additional and/or updated attributes for Condition.

Inherited Properties

Name	Type	Int	Dep	Multiplicity	Description
compositionId	ID	1.4		0..1	identifier of the Composition entity defined in the MTConnectDevices Response Documentresponse document published by an MTConnect Agent in response to a probe request. associated with the data reported for the Observation.
dataItemId	ID	1.1		1	unique identifier of the DataItem associated with this Observation. dataItemId MUST match the id attribute of the DataItem defined in the MTConnectDevices Response Documentresponse document published by an MTConnect Agent in response to a probe request..
name	string	1.1		0..1	name of the DataItem associated with this Observation. name MUST match the name attribute of the DataItem defined in the MTConnectDevices Response Documentresponse document published by an MTConnect Agent in response to a probe request..
sequence	integer	1.1		1	number representing the sequential position of an occurrence of an observationobserved value of a property at a point in time. in the data buffer of an agentsoftware that collects data published from one or more piece(s) of equipment, organizes that data in a structured manner, and responds to requests for data from client software systems by providing a structured response in the form of a response document that is constructed using the semantic data model of a Standard. . sequence MUST have a value represented as an unsigned 64-bit value from 1 to \(2^{64}-1\).
subType	DataItemSubTypeEnum	1.2		0..1	subtype of the DataItem associated with this Observation. subType MUST match the subType attribute of the DataItem defined in the MTConnectDevices Response Documentresponse document published by an MTConnect Agent in response to a probe request..
timestamp	dateTime	1.1		1	most accurate time available to a piece of equipment that represents the point in time that the data reported was measured.
type	DataItemTypeEnum	1.1		1	type of the DataItem associated with this Observation. type MUST match the type attribute of the DataItem defined in the MTConnectDevices Response Documentresponse document published by an MTConnect Agent in response to a probe request..
units	UnitEnum	1.1		0..1	units of the DataItem associated with this Observation. units MUST match the units attribute of the DataItem defined in the MTConnectDevices Response Documentresponse document published by an MTConnect Agent in response to a probe request..
result	string	1.1		0..1	observationobserved value of a property at a point in time. of the Observation entity. The default value type for result is string.

Inherited Relations

Name	Type	Int	Dep	Multiplicity	Description
isObservationOf	Component	1.1		0..*
isObservationOf	Agent	1.1		0..*
isObservationOf	DataItem	1.1		0..*

Properties

Name	Type	Int	Dep	Multiplicity	Description
nativeCode	string	1.1		0..1	native code (usually an alpha-numeric value) generated by the controller of a piece of equipment providing a reference identifier for a Condition. This is the same information an operator or maintenance personnel may see as a reference code designating a specific fault code provided by the piece of equipment.
nativeSeverity	string	1.1		0..1	severity information to a client software application if the piece of equipment designates a severity level to a fault.
qualifier	QualifierEnum	1.1		0..1	additional information regarding a condition stateindicator of the condition. associated with the measured value of a process variable. qualifier defines whether the condition stateindicator of the condition. represented indicates a measured value that is above or below an expected value of a process variable.
statistic	StatisticEnum	1.2		0..1	statistic provides additional information describing the meaning of the Condition element. statistic MUST match the statistic attribute of the DataItem entity defined in the MTConnectDevices Response Documentresponse document published by an MTConnect Agent in response to a probe request..
xs:lang	xslang	1.1		0..1	specifies the language of the result returned for the Condition. See IETF RFC 4646 (http://www.ietf.org/rfc/rfc4646.txt).
state	ConditionStateEnum	1.1		0..1	condition stateindicator of the condition. of the piece of equipment or Component.
type	ConditionEnum	1.1		1

Subclasses

Name	Int	Dep
Actuator	1.1
Communications	1.1
DataRange	1.2
LogicProgram	1.1
MotionProgram	1.1
System	1.1
