«abstract» Component

Definition: logical or physical entity that provides a capability.

Version Info

Introduced	Deprecated	Updated
1.0

Documentation

Description

«abstract» Component is an abstract entity and will be realized by specific «abstract» Component types for an MTConnectDevices entity. See Component Types for more details on the «abstract» Component types.

«abstract» Component also provides structure for describing the lower levelnested element that is below a higher level element. entities associated with it.

At least one of «abstract» Component, DataItem, or «abstract» Reference entities MUST be provided for a «abstract» Component.

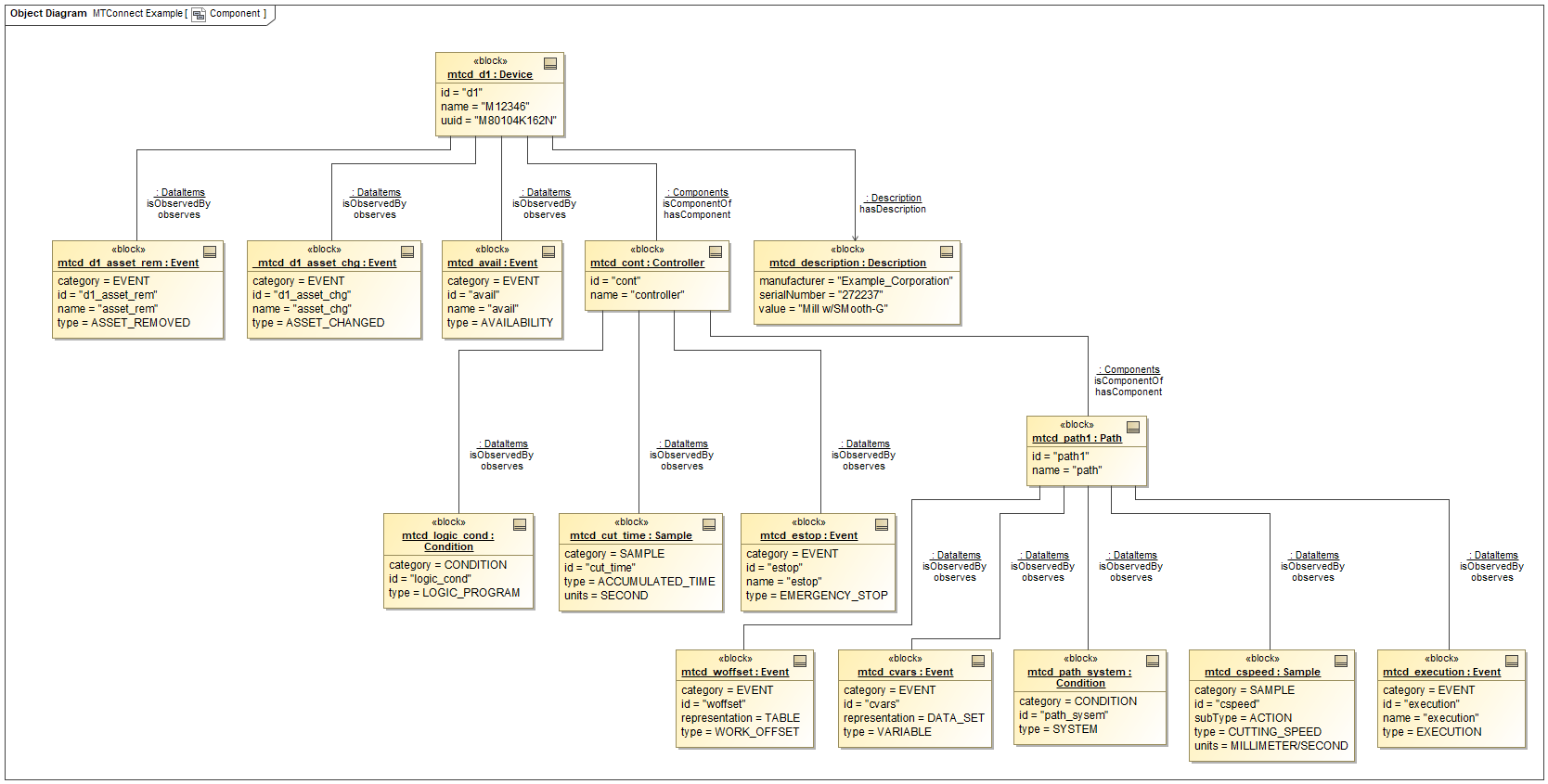

Component Example

Note: See component-example for the XML representation of the same example.

Properties

Name	Type	Int	Dep	Multiplicity	Description
`id`	`ID`	1.0		1	unique identifier for the «abstract» `Component`.
`name`	`string`	1.0		0..1	name of the «abstract» `Component`. When provided, «abstract» `Component::name` MUST be unique for all child «abstract» `Component` entities of a parent «abstract» `Component`.
`nativeName`	`string`	1.1		0..1	common name associated with «abstract» `Component`.
`sampleInterval`	`float`	1.2		0..1	interval in milliseconds between the completion of the reading of the data associated with the «abstract» `Component` until the beginning of the next sampling of that data. This information may be used by client software applications to understand how often information from a «abstract» `Component` is expected to be refreshed. The refresh rate for data from all child «abstract» `Component` entities will be the same as for the parent «abstract» `Component` element unless specifically overridden by another «abstract» `Component::sampleInterval` provided for the child «abstract» `Component`.
~~`sampleRate`~~	`float`	1.0	1.2	0..1	DEPRECATED in MTConnect Version 1.2. Replaced by «abstract» `Component::sampleInterval`.
`uuid`	`UUID`	1.0		0..1	universally unique identifier for the «abstract» `Component`.
`coordinateSystemIdRef`	`ID`	1.8		0..1	specifies the `CoordinateSystem` for this «abstract» `Component` and its children.

Parts

Name	Type	Int	Multiplicity
`hasDescription`	`Description`	1.0	0..1
`hasComposition`	«abstract» `Composition`	1.4	0..*
`hasComponent`	«abstract» `Component`	1.0	0..*
`hasConfiguration`	`Configuration`	1.2	0..1
`observes`	`DataItem`	1.0	0..*
`madeObservation`	«abstract» `Observation`	1.0	0..*
`hasReference`	«abstract» `Reference`	1.3	0..*

Relations

Name	Type	Int	Dep	Multiplicity	Description
`isComponentOf`	«abstract» `Component`	1.0		0..1
`hasComponentStream`	`ComponentStream`	1.0		0..1

Part Of

Name	Type	Int	Dep	Multiplicity	Description
`isComponentOf`	«abstract» `Component`	1.0		0..*

Constraints

Error Message OCL Expression

Error Message	OCL Expression
`Component` MUST have at least one of `Component`, `DataItem` or `Reference` entities.	val:MustHaveComponentOrDataItemOrReference a sh:NodeShape ; sh:message "`Component` MUST have at least one of `Component`, `DataItem` or `Reference` entities." ; sh:targetClass mt:Component ; sh:or ( [ sh:property [ sh:path mt:hasComponent ; sh:minCount 1 ; sh:class mt:Component ; ] ] [ sh:property [ sh:path mt:observes ; sh:minCount 1 ; sh:class mt:DataItem ; ] ] [ sh:property [ sh:path mt:hasReference ; sh:minCount 1 ; sh:class mt:Reference ; ] ] ) .

Component MUST have at least one of Component, DataItem or Reference entities.

val:MustHaveComponentOrDataItemOrReference
    a sh:NodeShape ;
    sh:message "`Component` **MUST** have at least one of `Component`, `DataItem` or  `Reference` entities." ;
    sh:targetClass mt:Component ;
    sh:or (
        [ sh:property [
            sh:path mt:hasComponent ;
            sh:minCount 1 ;
            sh:class mt:Component ;
        ] ]
        [ sh:property [
            sh:path mt:observes ;
            sh:minCount 1 ;
            sh:class mt:DataItem ;
        ] ]
        [ sh:property [
            sh:path mt:hasReference ;
            sh:minCount 1 ;
            sh:class mt:Reference ;
        ] ]
    ) .
