SensorConfiguration

Definition: configuration for a Sensor.

Version Info

Introduced	Deprecated	Updated
1.2

Documentation

Description

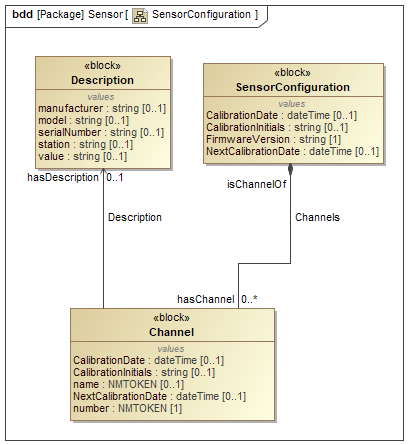

Note: See Section Configuration Schema Diagrams for XML schema.

Properties

Name	Type	Int	Dep	Multiplicity	Description
CalibrationDate	datetime	1.2		0..1	Date upon which the sensor unitintelligent piece of equipment that manages the signals of one or more sensing elements and provides the measured values. was last calibrated.
CalibrationInitials	string	1.2		0..1	The initials of the person verifying the validity of the calibration data.
FirmwareVersion	string	1.2		1	Version number for the sensor unit as specified by the manufacturer.
NextCalibrationDate	datetime	1.2		0..1	Date upon which the sensor unitintelligent piece of equipment that manages the signals of one or more sensing elements and provides the measured values. is next scheduled to be calibrated.

Parts

Name	Type	Int	Dep	Multiplicity	Description
hasChannel	Channel	1.2		0..*

Part Of

Name	Type	Int	Dep	Multiplicity	Description
isSensorConfigurationOf	Configuration	1.2		0..1
